RF5604

475MHZ TO 625MHZ FEM

RF Micro Devices

RF5604 Features

* Integrated 50 Input/Output Match

* Power Down Control

* TX OIP3 39dBm

* OP1dB 25dB

* 15dB RX Step Attenuator Applications

* MoCA

* Satellite Set Top Boxes GND 1 Vdd GND C_ATT Vdd 20 19 18 17 16 GND RX_OUT 2 15 C_PD GND 3 14 GND GND 4 13 RF IN/OUT TX_IN 5

RF5604 General Description

The RF5604 is a 475MHz to 625MHz Front-End Module (FEM) for the distribution of digital video within the home through existing coaxial cable. The FEM contains a linear GaAs Heterojunction Bipolar Transistor (HBT) Power Amplifier (PA) with a pHEMT Single-pole Double-throw (SPDT) switch, and a 1 bit s.

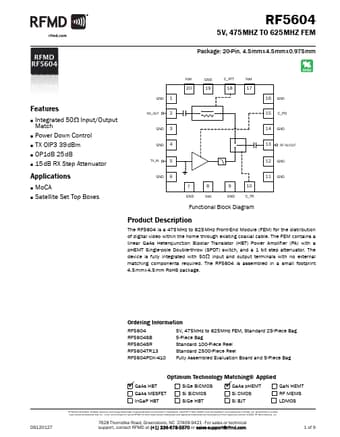

RF5604 Datasheet (415.28 KB)

RF5604 Datasheet Preview — Preview of RF5604 PDF

Datasheet Details

Part number:

RF5604

Manufacturer:

RF Micro Devices

File Size:

415.28 KB

Description:

475mhz to 625mhz fem.
