RF5611 (RF5500 - RF5611) 11B/G WLAN SP3T Switch

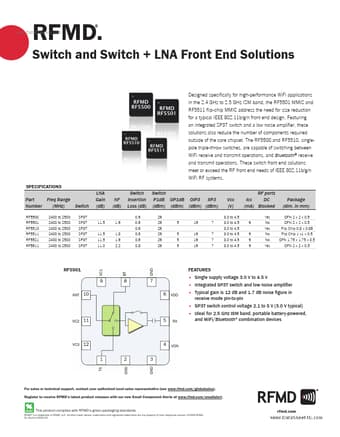

www.DataSheet4U.com RFMD. ® Switch and Switch + LNA Front End Solutions Designed specifically for high-performance WiFi applications in the 2.4 GHz to 2.5 GHz ISM band, the RF5501 MMIC and RF5511 flip-chip MMIC address the need for size reduction for a typical IEEE 802.11b/g/n front end design. Featuring an integrated SP3T switch and a low noise amplifier, these solutions also reduce the number of components required outside of the core chipset. The RF5500 and RF5510, singlepole triple-throw s.

RF5611 Features

* Single supply voltage 3.0 V to 4.5 V

* Integrated SP3T switch and low noise amplifier

* Typical gain is 12 dB and 1.7 dB noise figure in receive mode pin-to-pin

* SP3T switch control voltage 2.1 to 5 V (3.0 V typical)

* Ideal for 2.5 GHz ISM band, p

RF5500_RFMicroDevices.pdf

RF5611 Datasheet Preview — This datasheet PDF includes multiple part numbers: RF5611, RF5500. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

RF5611, RF5500

Manufacturer:

RF Micro Devices

File Size:

694.20 KB

Description:

(rf5500 - rf5611) 11b/g wlan sp3t switch.

Note:

This datasheet PDF includes multiple part numbers: RF5611, RF5500.
Please refer to the document for exact specifications by model.
