RFDA2026 - DIGITAL CONTROLLED VARIABLE GAIN AMPLIFIER

Product Overview

RF Micro Devices

Datasheet Details

Part number	RFDA2026
Manufacturer	RF Micro Devices
File Size	886.88 KB
Description	DIGITAL CONTROLLED VARIABLE GAIN AMPLIFIER
Datasheet	RFDA2026 Datasheet
Additional preview pages of the RFDA2026 datasheet.

Product details

Description

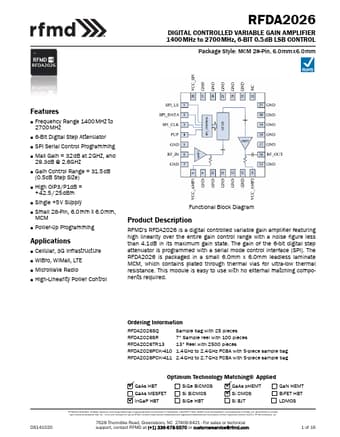

RFMD's RFDA2026 is a digital controlled variable gain amplifier featuring high linearity over the entire gain control range with a noise figure less than 4.1dB in its maximum gain state.

Features

Frequency Range 1400MHz to 2700 MHz.
6-Bit Digital Step Attenuator.
SPI Serial Control Programming.
Max Gain = 32dB at 2GHz, and 29.3dB @ 2.6GHz.
Gain Control Range = 31.5dB (0.5dB Step Size).
High OIP3/P1dB = + 42.5 / 25 dBm.
Single +5V Supply.
Small 28-Pin, 6.0mm x 6.0mm, MCM.
Power-up Programming.
