R1116D151B Datasheet - RICOH

R1116D151B - LOW NOISE 150mA LDO REGULATOR

R1116x SERIES LOW NOISE 150mA LDO REGULATOR NO.

EA-126-111026 OUTLINE The R1116x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, low supply current, low on Resistance, and high ripple rejection.

Each of these ICs consists of a voltage reference unit, an error amplifier, resistor-net for voltage setting, a short current limit circuit, a chip enable circuit, and so on.

These ICs perform with low dropout voltage and the chip-enable function.

The supply current at n

R1116D151B-RICOH.pdf

Preview of R1116D151B PDF

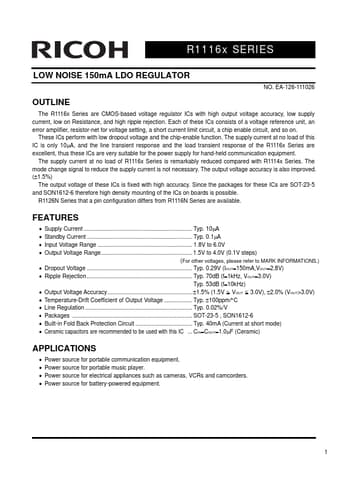

R1116D151B Datasheet Preview Page 2 R1116D151B Datasheet Preview Page 3

Datasheet Details

Part number:

R1116D151B

Manufacturer:

RICOH

File Size:

469.94 KB

Description:

Low noise 150ma ldo regulator.
