R1116D171B, R1116D151B Datasheet - RICOH

R1116D171B LOW NOISE 150mA LDO REGULATOR

R1116x SERIES LOW NOISE 150mA LDO REGULATOR NO. EA-126-111026 OUTLINE The R1116x Series are CMOS-based voltage regulator ICs with high output voltage accuracy, low supply current, low on Resistance, and high ripple rejection. Each of these ICs consists of a voltage reference unit, an error amplifier, resistor-net for voltage setting, a short current limit circuit, a chip enable circuit, and so on. These ICs perform with low dropout voltage and the chip-enable function. The supply current at n.

R1116D151B-RICOH.pdf

This datasheet PDF includes multiple part numbers: R1116D171B, R1116D151B. Please refer to the document for exact specifications by model.

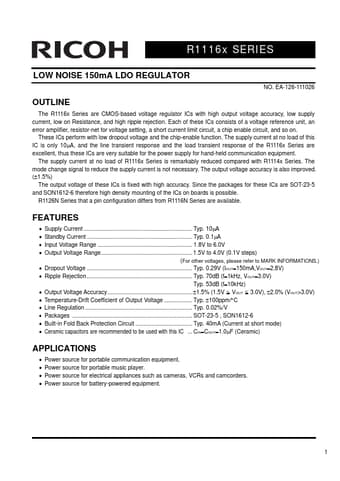

R1116D171B Datasheet Preview Page 2 R1116D171B Datasheet Preview Page 3

Datasheet Details

Part number:

R1116D171B, R1116D151B

Manufacturer:

RICOH

File Size:

469.94 KB

Description:

Low noise 150ma ldo regulator.

Note:

This datasheet PDF includes multiple part numbers: R1116D171B, R1116D151B.
Please refer to the document for exact specifications by model.
