BD2224G-LB

High-Side Switch

BD2224G-LB Features

* Long time support a product for Industrial applications.

* Over-Current Detection

* Thermal Shutdown

* Open-Drain Fault Flag Output

* Under-Voltage Lockout

* Soft-Start Circuit

* Control Input Logic ¾ Active-High (BD2224G) ¾ Active-Low (BD2225G) Application

BD2224G-LB General Description

This is the product guarantees long time support in Industrial market. BD2224G and BD2225G are low on-resistance N-channel MOSFET high-side power switches, optimized for Universal Serial Bus (USB) applications. BD2224G and BD2225G are equipped with the function of over-current detection, thermal shu.

BD2224G-LB Datasheet (603.50 KB)

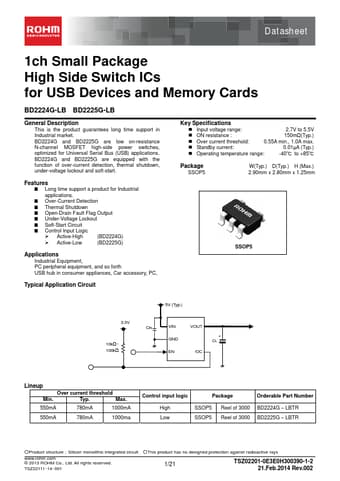

Preview of BD2224G-LB PDF

Datasheet Details

Part number:

BD2224G-LB

Manufacturer:

ROHM ↗

File Size:

603.50 KB

Description:

High-side switch.
