BD2222G

1ch Adjustable Current Limit High-Side Switch

Rohm

BD2222G Features

* Adjustable Current Limit Threshold: 0.2A to 1.7A

* Low On-Resistance (Typ 89mΩ) N-channel MOSFET Built-in

* Soft-Start Circuit

* Output Discharge Function

* BD2242G, BD2243G

* Open-Drain Fault Flag Output

* Thermal Shutdown

* Under-Voltage Lockout

* Reverse

BD2222G General Description

BD2222G, BD2242G and BD2243G are low on-resistance N-channel MOSFET high-side power switches, optimized for Universal Serial Bus (USB) applications. These devices are equipped with the function of over-current detection, thermal shutdown, under-voltage lockout and soft-start. Moreover, the range of .

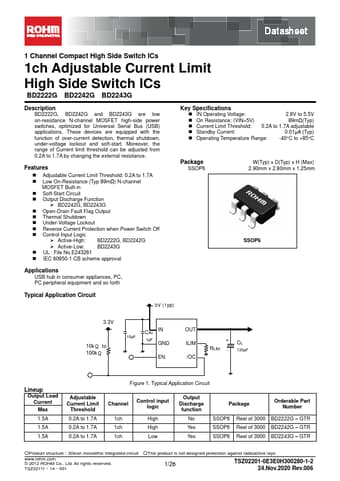

BD2222G Datasheet (1.44 MB)
