BD2221G - 0.75A Current Limit Latch Off High Side Switch ICs

Product Overview

Rohm

📥 Download Datasheet

BD2221G 0.75A Current Limit Latch Off High Side Switch ICs by Rohm - Datasheet Preview — Datasheet preview – BD2221G

Datasheet Details

Part number	BD2221G
Manufacturer	ROHM
File Size	619.03 KB
Description	0.75A Current Limit Latch Off High Side Switch ICs
Datasheet	BD2221G Datasheet

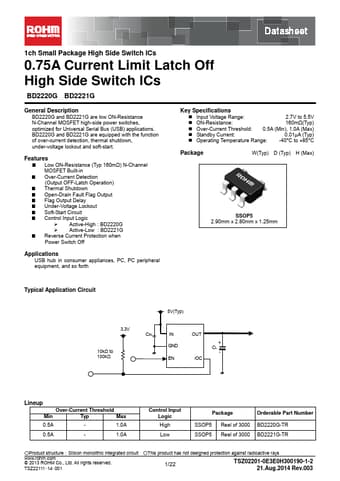

Additional preview pages of the BD2221G datasheet.

Product details

Description

BD2220G and BD2221G are low ON-Resistance N-Channel MOSFET high-side power switches, optimized for Universal Serial Bus (USB) applications.

Features

Low ON-Resistance (Typ 160mΩ) N-Channel MOSFET Built-in.
Over-Current Detection (Output OFF-Latch Operation).
Thermal Shutdown.
Open-Drain Fault Flag Output.
Flag Output Delay.
Under-Voltage Lockout.
Soft-Start Circuit.
Control Input Logic.
Active-High : BD2220G.
Active-Low : BD2221G.
Reverse Current Protection when Power Switch Off.
