BD2225G t High-Side Switch

BD2225G Description

Datasheet 1ch Compact High Side Switch ICs 0.75A Current Limit High Side Switch ICs BD2224G BD2225G General .
BD2224G and BD2225G are low ON-Resistance N-Channel MOSFET high-side power switches, optimized for Universal Serial Bus (USB) applications.

BD2225G Features

* Over-Current Detection
* Thermal Shutdown
* Open-Drain Fault Flag Output
* Flag Output Delay
* Under-Voltage Lockout
* Soft-Start Circuit
* Control Input Logic
* Active-High

📥 Download Datasheet

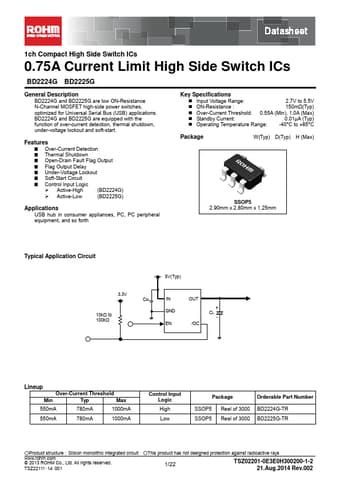

Preview of BD2225G PDF
