BD2225G-LB, BD2224G-LB Datasheet - ROHM

BD2225G-LB High-Side Switch

This is the product guarantees long time support in Industrial market. BD2224G and BD2225G are low on-resistance N-channel MOSFET high-side power switches, optimized for Universal Serial Bus (USB) applications. BD2224G and BD2225G are equipped with the function of over-current detection, thermal shu.

BD2225G-LB Features

* Long time support a product for Industrial applications.

* Over-Current Detection

* Thermal Shutdown

* Open-Drain Fault Flag Output

* Under-Voltage Lockout

* Soft-Start Circuit

* Control Input Logic ¾ Active-High (BD2224G) ¾ Active-Low (BD2225G) Application

BD2224G-LB-ROHM.pdf

This datasheet PDF includes multiple part numbers: BD2225G-LB, BD2224G-LB. Please refer to the document for exact specifications by model.

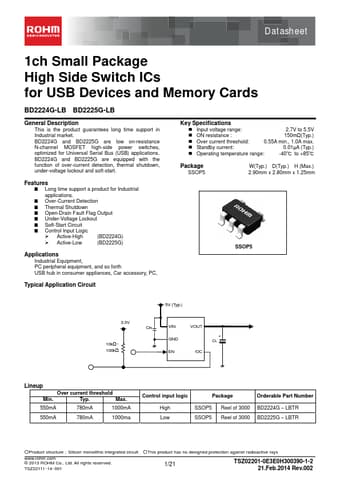

BD2225G-LB Datasheet Preview Page 2 BD2225G-LB Datasheet Preview Page 3
