BD3471KS2 7.1ch Sound Processor

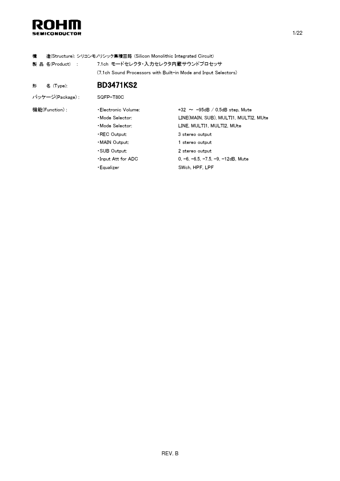

(Structure): (Silicon Monolithic Integrated Circuit) (Product) : 7.1ch (7.1ch Sound Processors with Built-in Mode and Input Selectors) (Type): BD3471KS2 (Package) : SQFP-T80C (Function) : Electronic Volume: Mode Selector: Mode Selector: REC Output: MAIN Output: SUB Output: Input Att for ADC Equalizer +32 ～ -95dB / 0.5dB step, Mute LINE(MAIN, SUB), MULTI1, MULTI2, MUte LINE, MULTI1, MULTI2, MUte 3 stereo output 1 stereo output 2 stereo output 0, -6, -6.5, -7.5, -9, -12dB, Mute SW.
