BS2100F

600V High voltage High & Low-side / Gate Driver

BS2100F Features

* Floating Channels for Bootstrap Operation to +600V

* Gate drive supply range from 10V to 18V

* Built-in Under Voltage Lockout for Both Channels

* 3.3V and 5.0V Input Logic Compatible

* Matched Propagation Delay for Both Channels

* Output in phase with input Applications

BS2100F General Description

The BS2100F is a monolithic high and low side gate drive IC, which can drive high speed power MOSFET and IGBT driver with bootstrap operation. The floating channel can be used to driven an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600V. The logic inputs can b.

BS2100F Datasheet (812.97 KB)

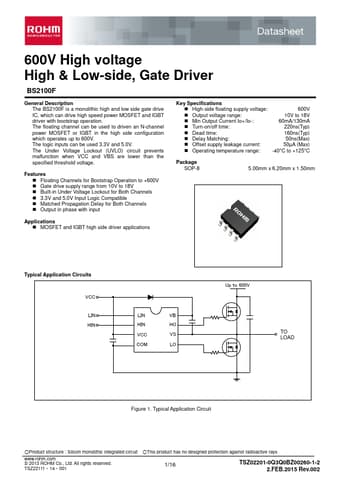

Preview of BS2100F PDF

Datasheet Details

Part number:

BS2100F

Manufacturer:

ROHM ↗

File Size:

812.97 KB

Description:

600v high voltage high & low-side / gate driver.
