BS2114F Datasheet, Driver, ROHM

BS2114F Features

  • Driver
  • Floating Channels for Bootstrap Operation to +600V
  • Gate drive supply range from 10V to 20V
  • Built-in Under Voltage Lockout for Both Channels
  • 3.3V

PDF File Details

Part number:

BS2114F

Manufacturer:

ROHM ↗

File Size:

861.58kb

Download:

📄 Datasheet

Description:

600v high voltage high & low-side gate driver. The BS2114F is a monolithic high and low side gate drive IC, which can drive high speed power MOSFET and IGBT driver with bootstrap o

Datasheet Preview: BS2114F 📥 Download PDF (861.58kb)

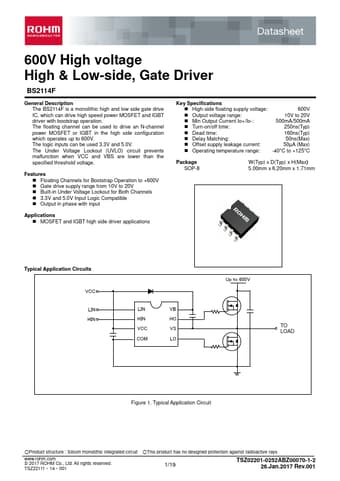

Page 2 of BS2114F Page 3 of BS2114F

BS2114F Application

  • Applications
  • MOSFET and IGBT high side driver applications Key Specifications
  • High-side floating supply voltage: 600V
  • <
