BS2103F 600V High voltage High & Low-side / Gate Driver

The BS2103F is a monolithic high and low side gate drive IC, which can drive high speed power MOSFET and IGBT driver with bootstrap operation. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600V. The logic inputs can be.

BS2103F Features

* Floating Channels for Bootstrap Operation to +600V

* Gate drive supply range from 10V to 18V

* Built-in Under Voltage Lockout for Both Channels

* 3.3V and 5.0V Input Logic Compatible

* Matched Propagation Delay for Both Channels

* Output in phase with input Applications

BS2103F Datasheet (884.57 KB)

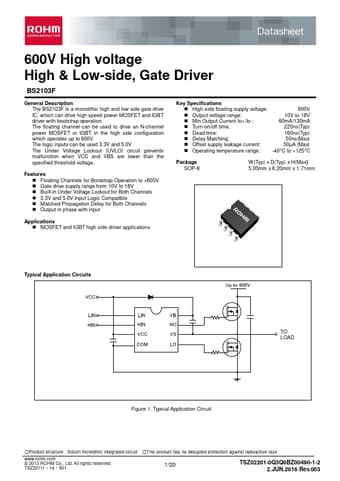

Preview of BS2103F PDF
BS2103F Datasheet Preview Page 2 BS2103F Datasheet Preview Page 3

Datasheet Details

Part number:

BS2103F

Manufacturer:

ROHM ↗

File Size:

884.57 KB

Description:

600v high voltage high & low-side / gate driver.
