BSM300D12P3E005 - SiC Power Module

ROHM

BSM300D12P3E005 Description

SiC Power Module BSM300D12P3E005 Application Motor drive Inverter, Converter Photovoltaics, wind power generation.Induction heating equipment.Circ.

BSM300D12P3E005 Features

* 1) Low surge, low switching loss. 2) High-speed switching possible. 3) Reduced temperature dependence. 6 5 10 NTC 11 Datasheet 1 3,4 2 Construction This product is a half bridge module consisting of SiC-UMOSFET and SiC-SBD from ROHM. Dimensions & Pin layout (Unit : mm) www. rohm. com © 2019 ROHM C

📥 Download Datasheet

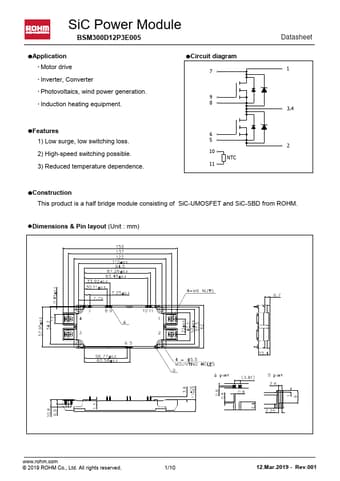

BSM300D12P3E005 Datasheet Preview — Preview of BSM300D12P3E005 PDF

Datasheet Details

Part number: BSM300D12P3E005
Manufacturer: ROHM ↗
File Size: 866.69 KB
Datasheet: BSM300D12P3E005-ROHM.pdf
Description: SiC Power Module
