BSM300GA120DN2E3166 IGBT

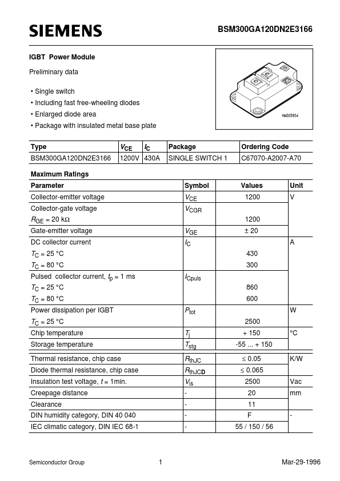

BSM300GA120DN2E3166 IGBT Power Module Preliminary data Single switch Including fast free-wheeling diodes Enlarged diode area Package with insulated metal base plate Type BSM300GA120DN2E3166 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage Symbol Values 1200 1200 Unit V VCE IC Package SINGLE SWITCH 1 Ordering Code C67070-A2007-A70 1200V 430A VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC collector current ± 20 A 430 3.
