BSM300GA170DN2E3166 IGBT

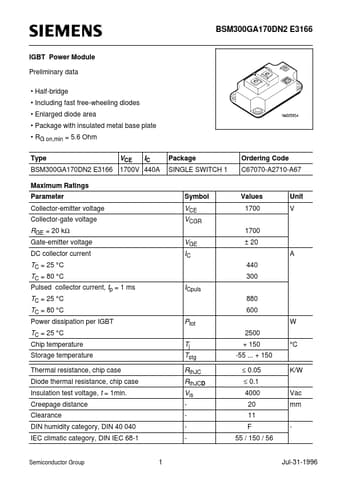

BSM300GA170DN2 E3166 IGBT Power Module Preliminary data Half-bridge Including fast free-wheeling diodes Enlarged diode area Package with insulated metal base plate RG on,min = 5.6 Ohm Type BSM300GA170DN2 E3166 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage Symbol Values 1700 1700 Unit V VCE IC Package SINGLE SWITCH 1 Ordering Code C67070-A2710-A67 1700V 440A VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC c.

BSM300GA170DN2E3166_SiemensSemiconductorGroup.pdf

Preview of BSM300GA170DN2E3166 PDF
BSM300GA170DN2E3166 Datasheet Preview Page 2 BSM300GA170DN2E3166 Datasheet Preview Page 3

Datasheet Details

Part number:

BSM300GA170DN2E3166

Manufacturer:

Siemens Semiconductor Group

File Size:

124.78 KB

Description:

Igbt.
