F20N60

20A 600V N-channel Enhancement Mode Power MOSFET

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi FCPF20N60 MOSFET N-CH 600V 20A TO220F DigiKey 1678 500 units
$2.46

F20N60 Datasheet (1.13 MB)

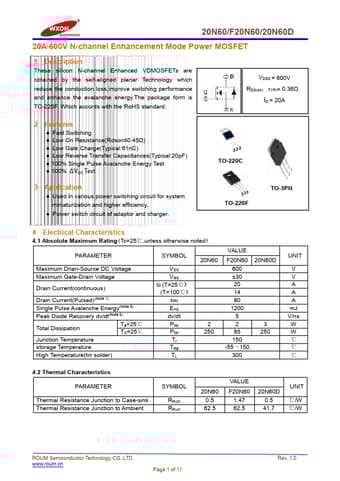

Preview of F20N60 PDF Datasheet

Datasheet Details

Part number:

F20N60

Manufacturer:

ROUM

File Size:

1.13 MB

Description:

20a 600v n-channel enhancement mode power mosfet

F20N60 Features

* Fast Switching

* Low On Resistance(Rdson≤0.45Ω)

* Low Gate Charge(Typical:61nC)

* Low Reverse Transfer Capacitances(Typical:20pF)

* 100% Single Pulse Avalanche Energy Test

* 100% ΔVDS Test 3 Application

* Used in various power switching circuit for system miniaturizatio

F20N60 General Description

These silicon N-channel Enhanced VDMOSFETs are obtained by the self-aligned planar Technology which reduce the conduction loss,improve switching performance and enhance the avalanche energy.The package form is TO-220F. Which accords with the RoHS standard. VDSS = 600V RDS(on) (TYP)= 0.36Ω ID = 20A .
