LM2903-Q1 General-Purpose High-Voltage Open-Drain Output Dual Comparator

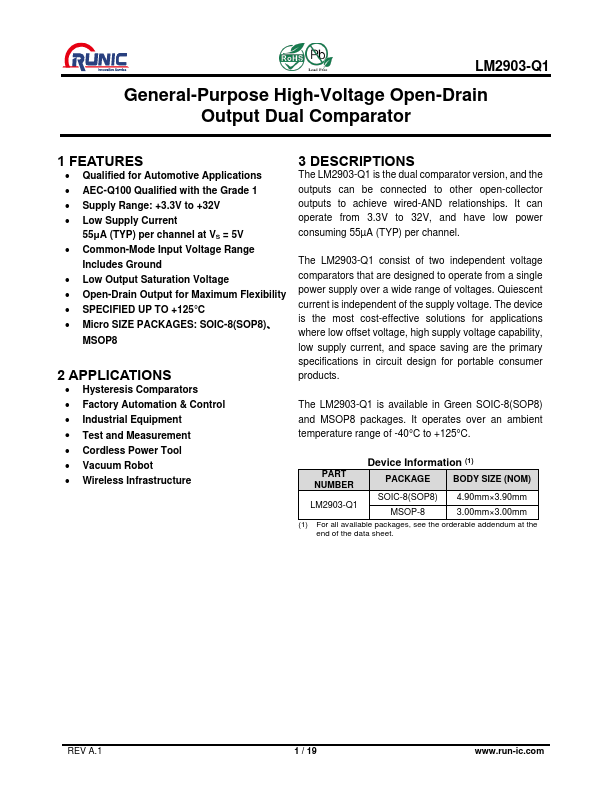

📥 Download Datasheet  Datasheet Preview Page 1

Description

LM2903-Q1 General-Purpose High-Voltage Open-Drain Output Dual Comparator 1 .
The LM2903-Q1 is the dual comparator version, and the outputs can be connected to other open-collector outputs to achieve wired-AND relationships.

📥 Download Datasheet

Preview of LM2903-Q1 PDF

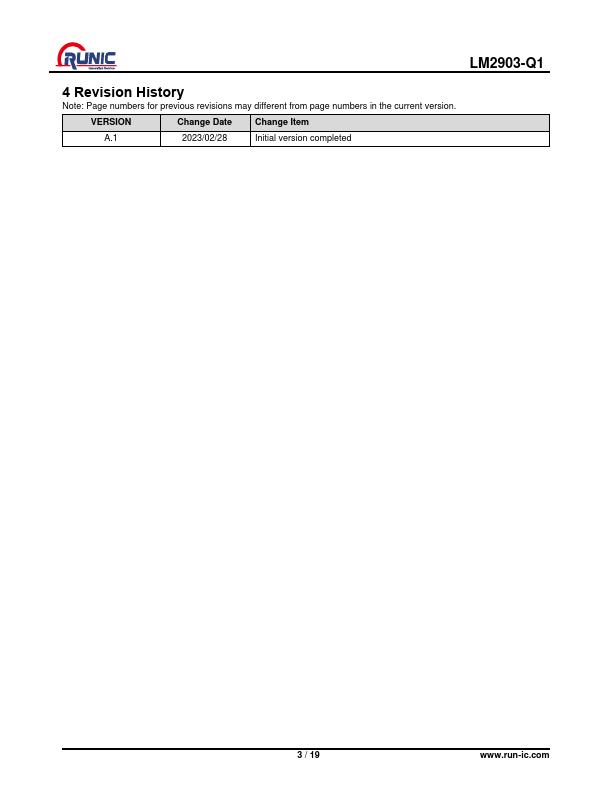

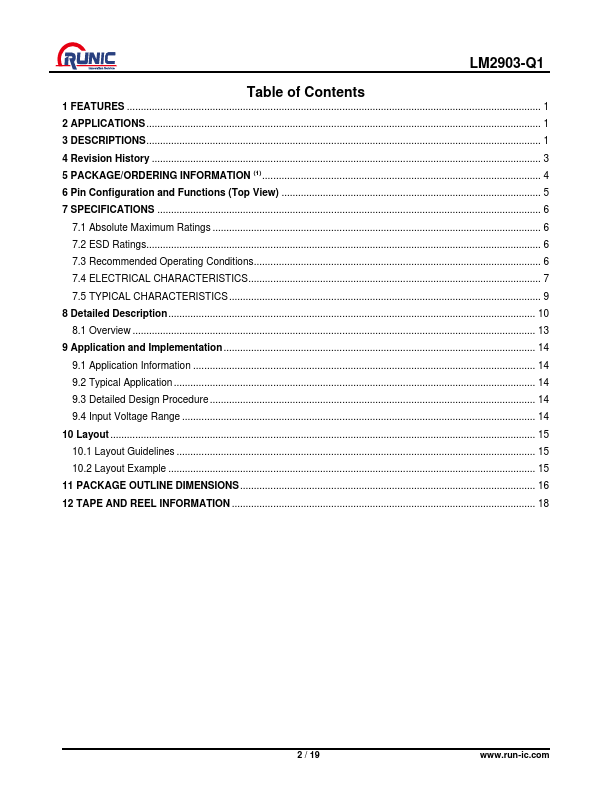

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LM2903-Q1
Manufacturer
RUNIC
File Size
423.55 KB
Datasheet
LM2903-Q1-RUNIC.pdf
Description
General-Purpose High-Voltage Open-Drain Output Dual Comparator

Applications

* AEC-Q100 Qualified with the Grade 1
* Supply Range: +3.3V to +32V
* Low Supply Current 55μA (TYP) per channel at VS = 5V
* Common-Mode Input Voltage Range Includes Ground
* Low Output Saturation Voltage
* Open-Drain Output for Maximum Flexibility
