RS2588 - Low Quiescent Current Power Distribution Switch

RUNIC

📥 Download Datasheet

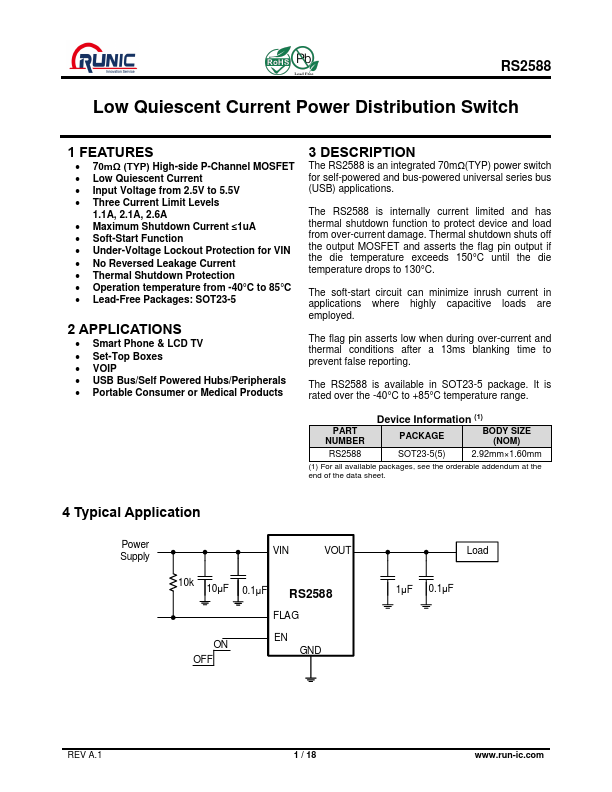

RS2588 Datasheet Preview — Preview of RS2588 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RS2588
Manufacturer	RUNIC
File Size	601.20 KB
Description	Low Quiescent Current Power Distribution Switch
Datasheet	RS2588-RUNIC.pdf

RS2588 Product details

Description

The RS2588 is an integrated 70mΩ(TYP) power switch for self-powered and bus-powered universal series bus (USB) applications.

Features

70mΩ (TYP) High-side P-Channel MOSFET.
Low Quiescent Current.
Input Voltage from 2.5V to 5.5V.
Three Current Limit Levels 1.1A, 2.1A, 2.6A.
Maximum Shutdown Current ≤1uA.
Soft-Start Function.
Under-Voltage Lockout Protection for VIN.
No Reversed Leakage Current.
Thermal Shutdown Protection.
Operation temperature from -40°C to 85°C.
Lead-Free Packages: SOT23-5 2.
