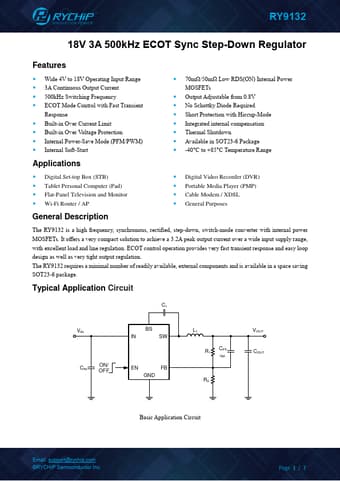

RY9132 Datasheet, Regulator, RYCHIP

RY9132 Features

• Regulator
• Wide 4V to 18V Operating Input Range
• 3A Continuous Output Current
• 500kHz Switching Frequency
• ECOT Mode Control with Fast Transient Response

PDF File Details

Part number:

RY9132

Manufacturer:

RYCHIP

File Size:

580.78kb

Download:

📄 Datasheet

Description:

18v 3a 500khz ecot sync step-down regulator. The RY9132 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a ve

RY9132 Application

• Applications
• Digital Set-top Box (STB)
• Tablet Personal Computer (Pad)
• Flat-Panel Television and Monitor
• Wi-
