RY9134 17V 3A 600KHz ECOT Sync Step-Down Regulator

The RY9134 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 3A continuous output current over a wide input supply range, with excellent load and line regulation. ECOT control operation provides .

RY9134 Features

* Wide 4.5V to 17V Operating Input Range

* 3A Continuous Output Current

* 600KHz Switching Frequency

* ECOT Mode Control with Fast Transient Response

* Built-in Over Current Limit

* Built-in Over Voltage Protection

* PFM Mode for High Efficien

RY9134-RYCHIP.pdf

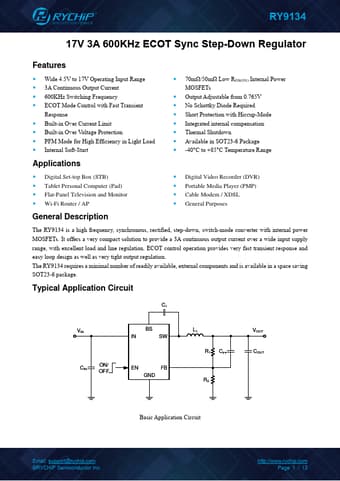

RY9134 Datasheet Preview — Preview of RY9134 PDF

Datasheet Details

Part number:

RY9134

Manufacturer:

RYCHIP

File Size:

1.05 MB

Description:

17v 3a 600khz ecot sync step-down regulator.
