RY9137C

17V 3A 800KHz ECOT Sync Step-Down Regulator

RYCHIP

RY9137C Features

* Wide 4.5V to 17V Operating Input Range

* 3A Continuous Output Current

* 800KHz Switching Frequency

* ECOT Mode Control with Fast Transient Response

* Built-in Over Current Limit

* Built-in Over Voltage Protection

* Force-PWM Mode

* I

RY9137C General Description

The RY9137C is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 3A continuous output current over a wide input supply range, with excellent load and line regulation. ECOT control operation provides.

RY9137C Datasheet (1.08 MB)

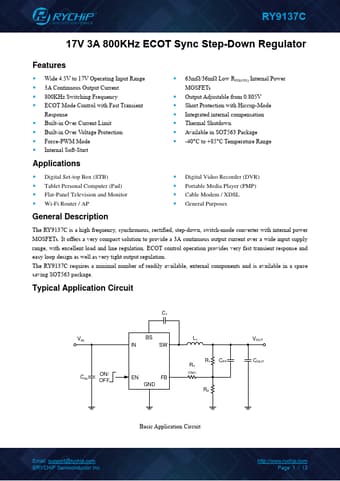

RY9137C Datasheet Preview — Preview of RY9137C PDF

Datasheet Details

Part number:

RY9137C

Manufacturer:

RYCHIP

File Size:

1.08 MB

Description:

17v 3a 800khz ecot sync step-down regulator.
