BR305

SINGLE-PHASE SILICON BRIDGE RECTIFIER

BR305 Features

* Surge overloab rating: 50 amperes peak

* Low forward voltage drop

* Small size: simple installation

* Silver-plated copper leads

* Mounting position: Any

* Mounting: Hole thru for # 6 screw

* Weight: 3.36 grams MECHANICAL DATA

* UL listed the recognized component di

BR305 Datasheet (57.26 KB)

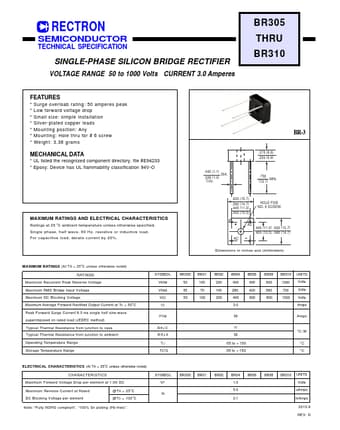

Preview of BR305 PDF

Datasheet Details

Part number:

BR305

Manufacturer:

RectrON Semiconductor ↗

File Size:

57.26 KB

Description:

Single-phase silicon bridge rectifier.
RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION SINGLE-PHASE SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 3.0 Amperes BR305 THRU BR3.
