DB156, DB151 - SILICON BRIDGE RECTIFIER

Rectron

📥 Download Datasheet

DB156 Datasheet Preview — This datasheet PDF includes multiple part numbers: DB156, DB151. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: DB156, DB151
Manufacturer: Rectron
File Size: 77.90 KB
Datasheet: DB151-Rectron.pdf
Description: SILICON BRIDGE RECTIFIER
Note: This datasheet PDF includes multiple part numbers: DB156, DB151.
Please refer to the document for exact specifications by model.

DB156 Product details

Description

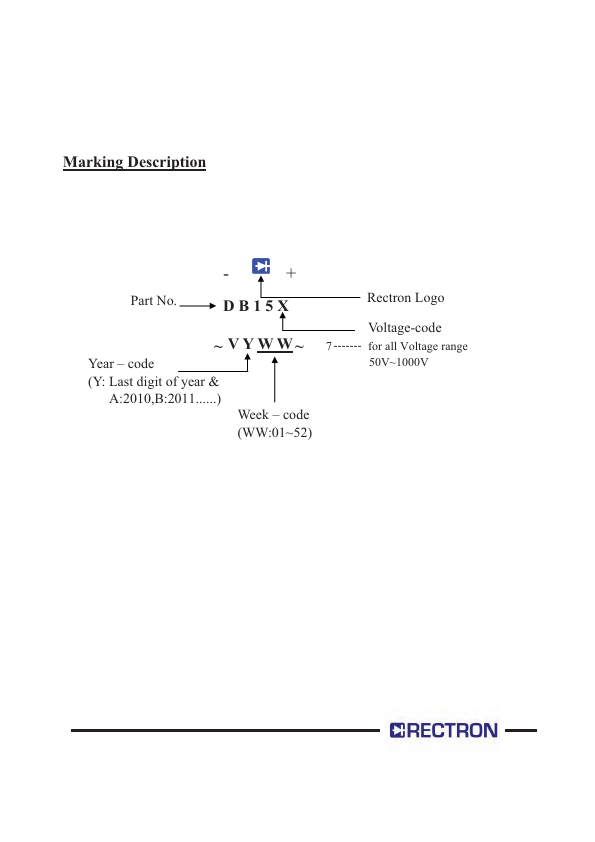

- + Part No.DB15X Rectron Logo ~ VYWW~ Year code (Y: Last digit of year & A:2010,B:2011) Week code (WW:01~52) Voltage-code 7 ------- for all Voltage range 50V~1000V

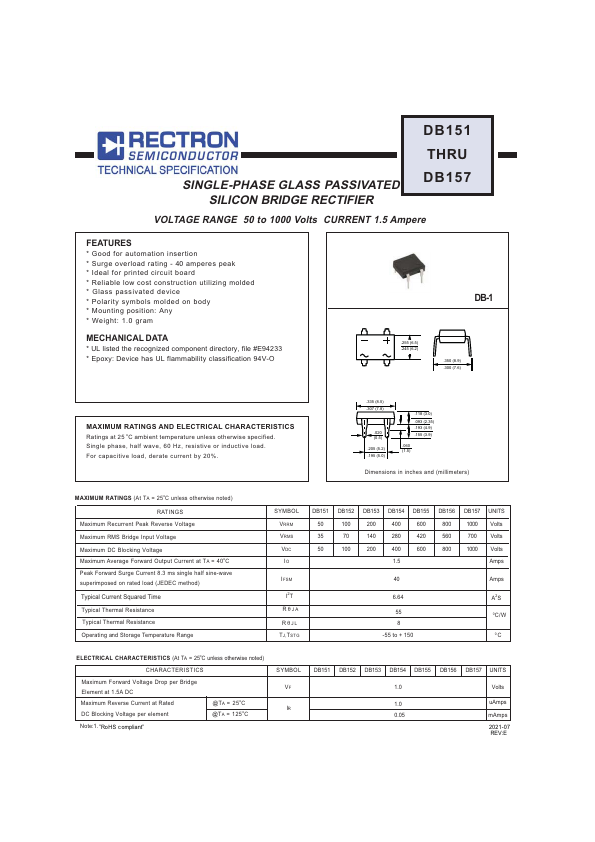

Features

Good for automation insertion.
Surge overload rating - 40 amperes peak.
Ideal for printed circuit board.
Reliable low cost construction utilizing molded.
Glass passivated device.
Polarity symbols molded on body.
Mounting position: Any.
Weight: 1.0 gram.
