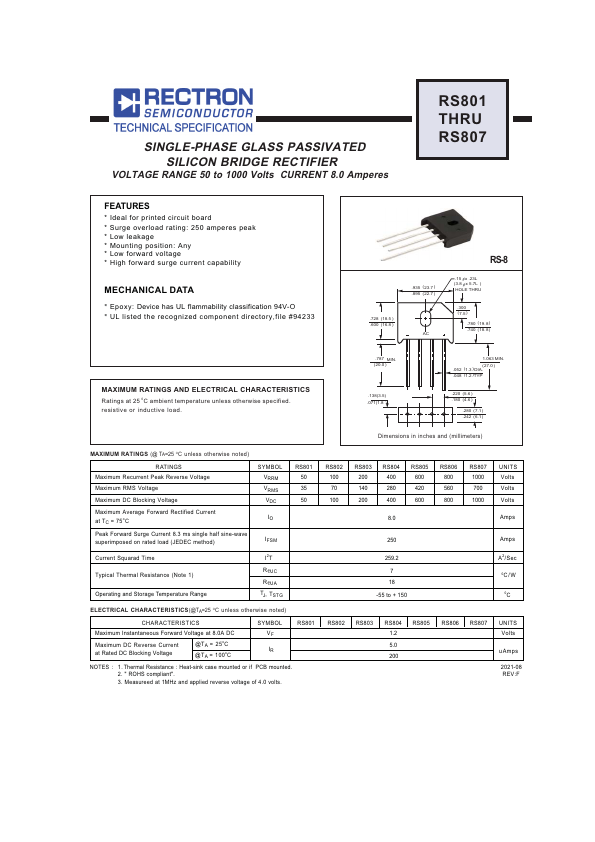

RS805, RS801 SILICON BRIDGE RECTIFIER

RS805 Description

SINGLE-PHASE GLASS PASSIVATED SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 8.0 Amperes RS801 THRU RS807 .

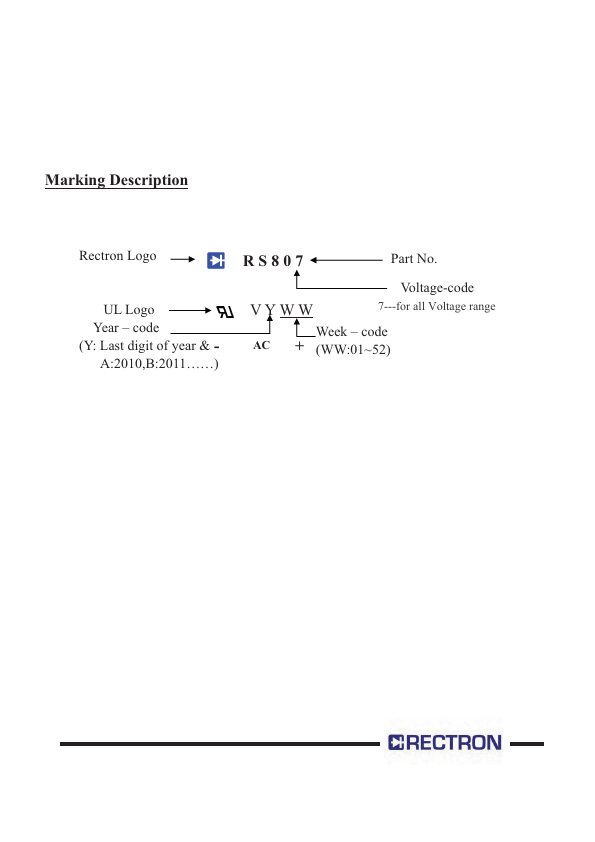

Rectron Logo UL Logo Year. code (Y: Last digit of year & - A:2010,B:2011……) RS807 Part No. -for all Voltage.

RS805 Features

* Ideal for printed circuit board
* Surge overload rating: 250 amperes peak
* Low leakage
* Mounting position: Any
* Low forward voltage
* High forward surge current capability MECHANICAL DATA Epoxy: Device has UL flammability classification 94V-O UL listed the recognized

RS805 Applications

* and actual performance may vary over time. Rectron Inc does not assume any liability arising out of the application or use of any product or circuit. Rectron products are not designed, intended or authorized for use in medical, life-saving implant or other applications intended for life-sustaining o

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS805, RS801. Please refer to the document for exact specifications by model.

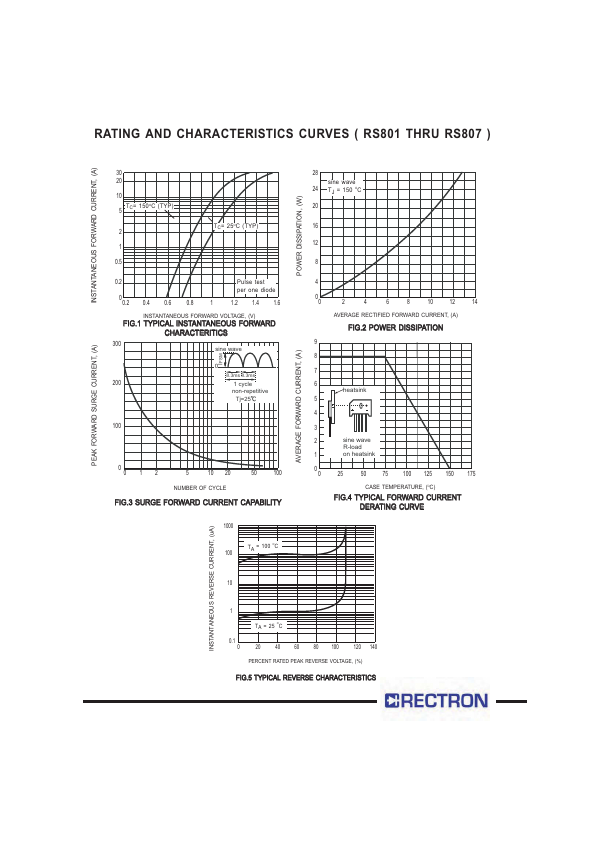

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS805, RS801
Manufacturer
Rectron
File Size
114.42 KB
Datasheet
RS801-Rectron.pdf
Description
SILICON BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: RS805, RS801.
Please refer to the document for exact specifications by model.
