RS805M SILICON BRIDGE RECTIFIER

Rectron Logo UL Logo Year * code (Y:Last digit of year) RS80XM VYWW Week * code (WW:01~52) Part No. Voltage-code 1 * * *-50V 5 * * *-600V 2 * * *-100V 6 * * *-800V 3 * * *-200V.

RS805M Features

* Low leakage

* Low forward voltage

* Surge overload rating : 200 amperes peak

* Mounting position: Any

* Ideal for printed circuit boards

* High forward surge current capability MECHANICAL DATA

* Epoxy: Device has UL flammability classification 94V-O

* UL list the re

RS805M Datasheet (323.09 KB)

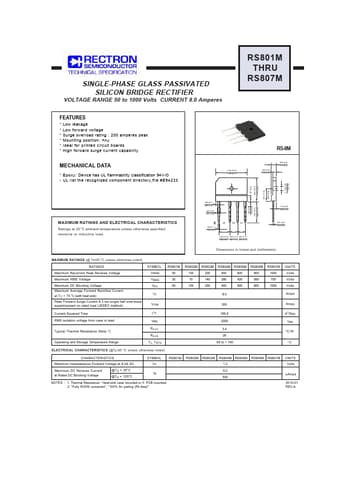

RS805M Datasheet Preview — Preview of RS805M PDF

Datasheet Details

Part number:

RS805M

Manufacturer:

Rectron

File Size:

323.09 KB

Description:

Silicon bridge rectifier.
