HD74LV1GT08A Datasheet - Renesas Technology

HD74LV1GT08A - 2-input AND Gate / CMOS Logic Level Shifter

The HD74LV1GT08A is high-speed CMOS two input AND gate using silicon gate CMOS process.

With CMOS low power dissipation, it provides high-speed equivalent to LS *TTL series.

The internal circuit of three stages construction with buffer provides wide noise margin and stable output.

The input p

HD74LV1GT08A Features

* The basic gate function is lined up as Renesas uni logic series.

* Supplied on emboss taping for high-speed automatic mounting.

* TTL compatible input level. Supply voltage range : 3.0 to 5.5 V Operating temperature range :

* 40 to +85°C

* Logic-level transla

HD74LV1GT08A_RenesasTechnology.pdf

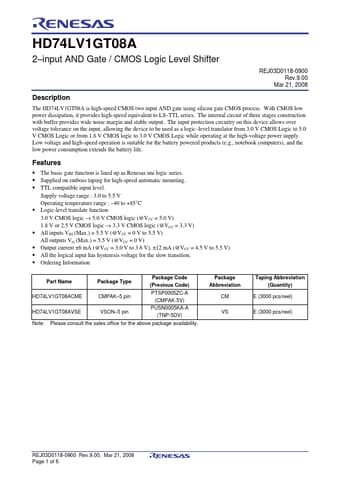

Preview of HD74LV1GT08A PDF
