HD74LV1GW17A - Dual Buffer

Renesas Technology

Datasheet Details

Part number	HD74LV1GW17A
Manufacturer	Renesas Technology
File Size	150.42 KB
Description	Dual Buffer
Datasheet	HD74LV1GW17A_RenesasTechnology.pdf

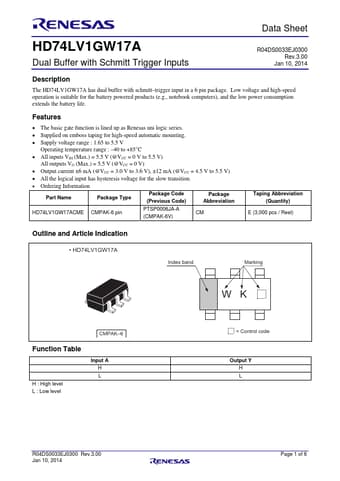

The HD74LV1GW17A has dual buffer with schmitt trigger input in a 6 pin package.

The basic gate function is lined up as Renesas uni logic series.
Supplied on emboss taping for high-speed automatic mounting.
Supply voltage range : 1.65 to 5.5 V Operating temperature range :.
40 to +85°C.
All inputs VIH (Max. ) = 5.5 V (@VCC = 0 V to 5.5 V) All outputs VO (Max. ) = 5.5 V (@VCC = 0 V).
Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V).
All the logical input has hysteresis voltage for t.
