HD74LV1GW98A Datasheet - Renesas Technology

Configurable Multiple-Function Gate

HD74LV1GW98A Features

* The basic gate function is lined up as Renesas uni logic series.

* Supplied on emboss taping for high-speed automatic mounting.

* Supply voltage range : 1.65 to 5.5 V Operating temperature range :

* 40 to +85°C

* All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5

HD74LV1GW98A General Description

The HD74LV1GW98A has configurable multiple *function gate in a 6 pin package. The Output state is determined by eight patterns of 3 *bit input. The user can choose the logic functions AND, NAND, OR, NOR, INVERTER, Non * Inverted Buffer, Data Selector. Low voltage and high-speed .

HD74LV1GW98A Datasheet (119.18 KB)

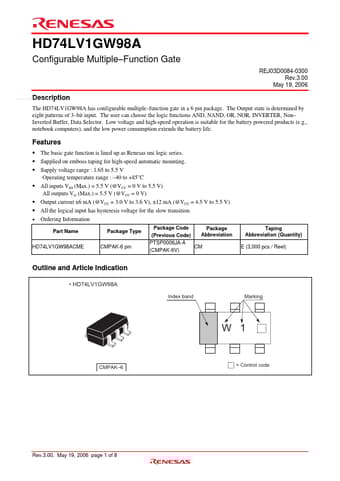

Preview of HD74LV1GW98A PDF

Datasheet Details

Part number:

HD74LV1GW98A

Manufacturer:

Renesas ↗ Technology

File Size:

119.18 KB

Description:

Configurable multiple-function gate.
