RJP4002ANS, Nch IGBT

RJP4002ANS Nch IGBT for Strobe Flash REJ03G1472-0100 Rev.1.00 Oct 13, 2006 .

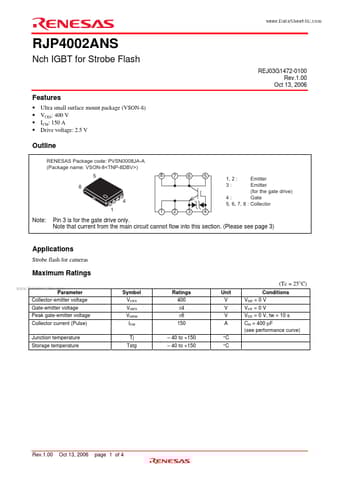

datasheet Preview Page 1 from Datasheet4u.com

RJP4002ANS_RenesasTechnology.pdf

RJP4002ANS Datasheet Preview — Preview of RJP4002ANS PDF

Datasheet Details

Part number:

RJP4002ANS

Manufacturer:

Renesas ↗ Technology

File Size:

118.78 KB

Description:

Nch IGBT

Features

* Ultra small surface mount package (VSON-8) VCES: 400 V ICM: 150 A Drive voltage: 2.5 V Outline RENESAS Package code: PVSN0008JA-A (Package name: VSON-8) 5 8 4 1 1 2 3 4 8 7 6 5 1, 2 : 3: Emitter Emitter (for the gate drive) 4: Gate 5, 6, 7, 8 : Coll

Applications

* Strobe flash for cameras Maximum Ratings www. DataSheet4U. com (Tc = 25°C) Symbol VCES VGES VGEM ICM Tj Tstg Ratings 400 ±4 ±6 150
* 40 to +150
* 40 to +150 Unit V V V A °C °C Conditions VGE = 0 V VCE = 0 V VCE = 0 V, tw = 10 s CM = 400 µF (see performance curve) Parameter Collector
