RJP1CS03DWT - IGBT

Renesas

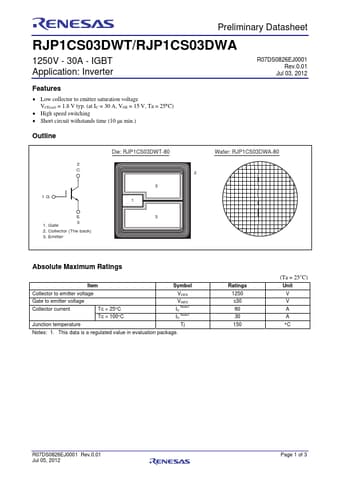

RJP1CS03DWT Datasheet Preview — Preview of RJP1CS03DWT PDF

Datasheet Details

Part number	RJP1CS03DWT
Manufacturer	Renesas ↗
File Size	129.33 KB
Description	IGBT
Datasheet	RJP1CS03DWT_Renesas.pdf

RJP1CS03DWT Product details

Description

of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples.

Features

Low collector to emitter saturation voltage VCE(sat) = 1.8 V typ. (at IC = 30 A, VGE = 15 V, Ta = 25C).
High speed switching.
Short circuit withstands time (10 s min. ) R07DS0826EJ0001 Rev.0.01 Jul 03, 2012 Outline Die: RJP1CS03DWT-80 2 C 3 1G 1 Wafer: RJP1CS03DWA-80 2 1. Gate 2. Collector (The back) 3. Emitter www. DataSheet. net/ E 3 3 Absolute Maximum Ratings (Ta = 25°C) Item Collector to emitter voltage Gate to emitter voltage Collector current Tc = 25°C Tc = 100°C Junc.
