* Halogen-free
* TrenchFET® Power MOSFET APPLICATIONS
* Load Switches for Portable Devices RoHS COMPLIANT D D GD S G S N-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Limit Unit Drain-Source Voltage Gate-Source Voltage
RJP020N06T100 Datasheet (226.79 KB)
RJP020N06T100
VBsemi
226.79 KB
N-channel mosfet.

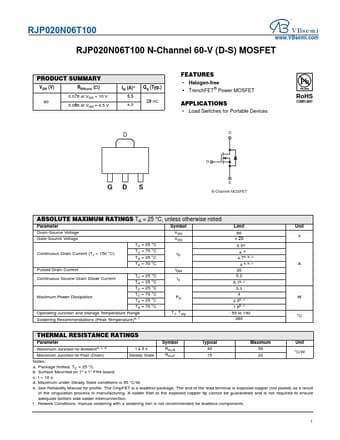

RJP020N06T100 N-Channel 60-V (D-S) MOSFET
www.VBsemi.com
PRODUCT SUMMARY
VDS (V)
RDS(on) (Ω)
0.076 at VGS = 10 V 60
0.088 at VGS = 4.5 V
ID (A)a.
