Part number:
RJP4002ASA
Manufacturer:
Renesas ↗ Technology
File Size:
167.37 KB
Description:
Nch igbt.
RJP4002ASA Datasheet (167.37 KB)

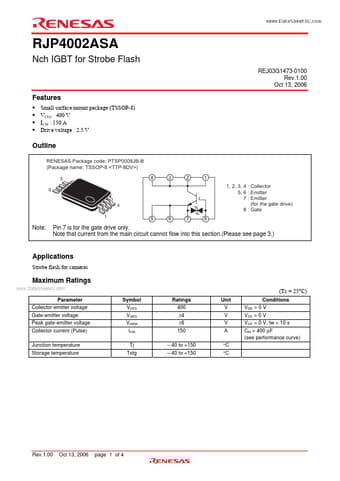

* Small surface mount package (TSSOP-8) VCES : 400 V ICM : 150 A Drive voltage : 2.5 V Outline RENESAS Package code: PTSP0008JB-B (Package name: TSSOP-8 ) 5 8 4 1 4 3 2 1 1, 2, 3, 4 : Collector 5, 6 : Emitter 7 : Emitter (for the gate drive) 8 : Ga
RJP4002ASA Datasheet (167.37 KB)
RJP4002ASA
Renesas ↗ Technology
167.37 KB
Nch igbt.
