2SB1001 Datasheet - Renesas

Silicon PNP Transistor

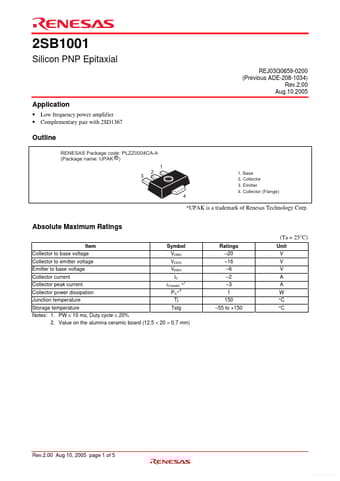

2SB1001 Silicon PNP Epitaxial REJ03G0659-0200 (Previous ADE-208-1034) Rev.2.00 Aug.10.2005 Application Low frequency power amplifier Complementary pair with 2SD1367 Outline RENESAS Package code: PLZZ0004CA-A (Package name: UPAK R ) 1 3 2 1. Base 2. Collector 3. Emitter 4. Collector (Flange) 4 UPAK is a trademark of Renesas Technology Corp. Absolute Maximum Ratings (Ta = 25°C) Item Symbol Collector to base voltage VCBO Collector to emitter voltage VCEO Emitter to bas.

2SB1001 Features

* 2> 2-796-2145 http://www.renesas.com Renesas Technology Malaysia Sdn. Bhd. Unit 906, Block B, Menara Amcorp, Amcorp Trade Centre, No.18, Jalan Persiaran Barat, 46050 Petaling Jaya, Selangor Darul Ehsan, Malaysia Tel: 7955-9390, Fax: 7955-9510 © 2005. Renesas Technology Corp., All righ

2SB1001 Datasheet (85.27 KB)
