2SB561 Datasheet - Renesas

2SB561 Silicon PNP Transistor

2SB561 Silicon PNP Epitaxial Application Low frequency power amplifier Complementary pair with 2SD467 Outline RENESAS Package code: PRSS0003DA-A (Package name: TO-92 (1)) REJ03G0645-0200 (Previous ADE-208-1023) Rev.2.00 Aug.10.2005 1. Emitter 2. Collector 3. Base Absolute Maximum Ratings Item Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector peak current Collector power dissipation Junction temperature Storage tempera.

2SB561-Renesas.pdf

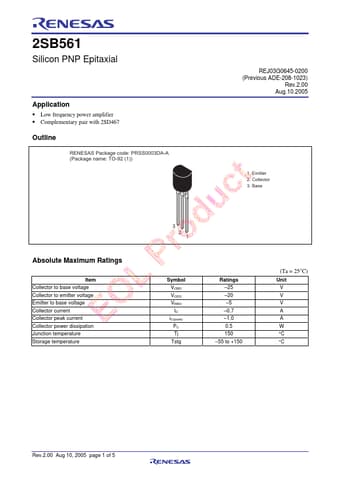

Preview of 2SB561 PDF
2SB561 Datasheet Preview Page 2 2SB561 Datasheet Preview Page 3

Datasheet Details

Part number:

2SB561

Manufacturer:

Renesas ↗

File Size:

65.72 KB

Description:

Silicon pnp transistor.
