EL5171 - 250MHz Differential Twisted-Pair Drivers

EL5171 Description

EL5171, EL5371 250MHz Differential Twisted-Pair Drivers The EL5171 and EL5371 are single and triple bandwidth amplifiers with an output in differentia.
EL5171 1 2 3 4 5 6 7 8 EL5371 17, 21, 27 2, 6, 10 4, 8, 12 3, 7, 11 16, 20, 26 15, 19, 25 24 23 18, 22, 28 1, 5, 9, 13 14 PIN NAME FBP IN+ REF FBN.

EL5171 Features

* Fully differential outputs and feedback
* Input range ±2.3V typ.
* 250MHz 3dB bandwidth
* 800V/µs slew rate
* Low distortion at 5MHz
* Single 5V or dual ±5V supplies
* 90mA maximum output current
* Low power - 8mA per channel

EL5171 Applications

* such as driving twisted-pair lines in component video applications. The input signal is single-ended and the outputs are always differential. On the EL5171 and EL5371, two feedback inputs provide the user with the ability to set the gain of each device (stable at minimum gain of one). For a fixed ga

📥 Download Datasheet

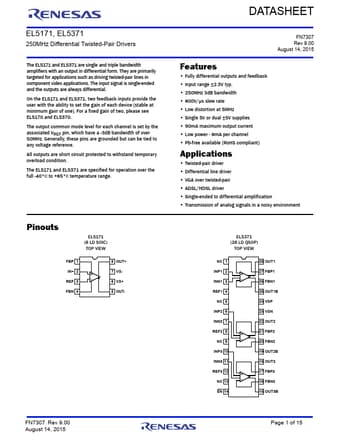

Preview of EL5171 PDF
