EL5174 Datasheet, Driver, Renesas

EL5174 Features

• Driver
• Fully differential inputs, outputs, and feedback
• Differential input range ±2.3V
• 550MHz 3dB bandwidth
• 1100V/µs slew rate
• Low distortion

PDF File Details

Part number:

EL5174

Manufacturer:

Renesas ↗

File Size:

740.78kb

Download:

📄 Datasheet

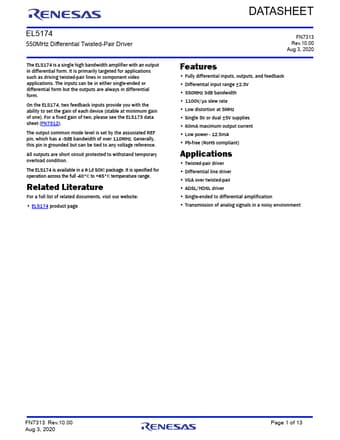

Description:

550mhz differential twisted-pair driver. PIN NUMBER 1 2 3 4 5 6 7 8 PIN NAME FBP IN+ REF FBN OUTVS+ VSOUT+ PIN FUNCTION Feedback from non-inverting output Non-inverting in

EL5174 Application

• Applications such as driving twisted-pair lines in component video applications. The inputs can be in either single-ended or differential form but t
