EL5173 - 450MHz Differential Twisted-Pair Driver

EL5173 Description

EL5173, EL5373 450MHz Differential Twisted-Pair Drivers The EL5173 and EL5373 are single and triple high bandwidth amplifiers with a fixed gain of 2..
EL5173 PIN NUMBER PIN NAME 1 IN+ PIN NUMBER 2, 6, 10 2 EN 1 3 IN- 3, 7, 11 EL5373 PIN NAME INP1, INP2, INP3 EN INN1, INN2, INN3 4 REF 4, 8,.

EL5173 Features

* Fully differential inputs and outputs
* Differential input range ±2.3V
* 450MHz 3dB bandwidth at fixed gain of 2
* 900V/µs slew rate (EL5173)
* 1100V/µs slew rate (EL5373)
* Single 5V or dual ±5V supplies
* 40mA maximum output current

EL5173 Applications

* such as driving twisted-pair lines in component video applications. The inputs can be in either single-ended or differential form but the outputs are always in differential form. The output common mode level for each channel is set by the associated REF pin, which has a -3dB bandwidth of over 190MHz

📥 Download Datasheet

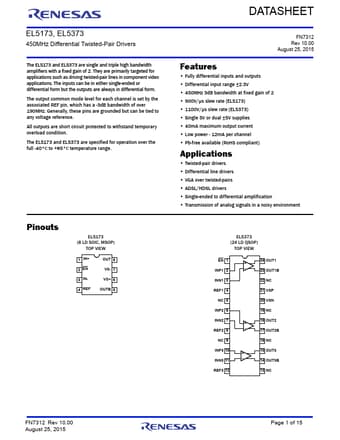

Preview of EL5173 PDF
