EL5172 250MHz Differential Line Receiver

(RoHS Compliant) PKG. DWG. # CARRIER TYPE (Note 1) TEMP. RANGE EL5172ISZ 5172ISZ 8 Ld SOIC (150 mil) M8.15E Tube -40°C to +85°C EL5172ISZ-T7 Reel, 1k EL5172ISZ-T7A Reel, 250 EL5172ISZ-T13 Reel, 2.5k EL5172IYZ BAAWA 8 Ld MSOP (3.0mm) M8.118A Tube EL5172IYZ-T7 Reel, 1.5k EL5172I.

EL5172 250MHz Differential Line Receiver The EL5172 is a single high bandwidth amplifier designed to extract the difference signal from noisy environments. It is primarily targeted for applications such as receiving signals from twisted-pair lines or any application where common mode noise injection is likely to occur. The EL5172 is stable for a gain of one and requires two external resistors to set the voltage gain. The output common mode level is set by the reference pin (VREF), which has a -3.

EL5172 Features

* Differential input range ±2.3V

* 250MHz 3dB bandwidth

* 800V/µs slew rate

* 60mA maximum output current

* Single 5V or dual ±5V supplies

* Low power - 5mA to 6mA

* Pb-free available (RoHS compliant) Applications

* Twisted-pair receive

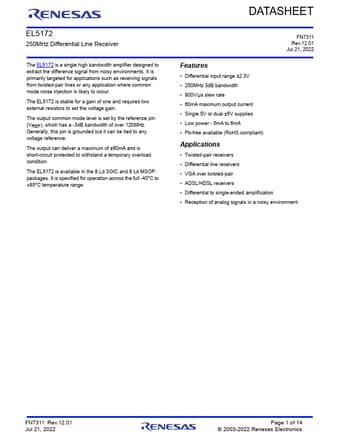

EL5172 Datasheet (770.32 KB)
