FS1027 Datasheet - Renesas

FS1027 - Liquid Flow Sensor

3 2.

Specifications 4 2.1 Absolute Maximum Ratings 4 2.2 Recommended Operating Conditions4 2.3 Electrical Characteristics 4 3.

Typical Flow Graphs5 3.1 Heater Enable5 3.2 Electrical Connector5 3.3 Module Material 6 3.4 Tubing Guidance 6 4.

Package Outline Drawings6 5.

Ordering Information6 6.

Revisi

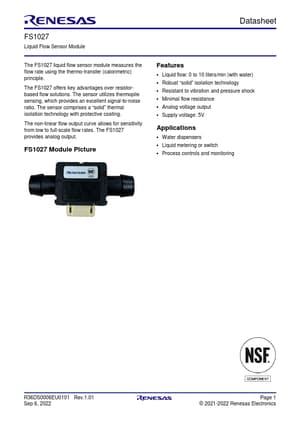

FS1027 Liquid Flow Sensor Module Datasheet The FS1027 liquid flow sensor module measures the flow rate using the thermo-transfer (calorimetric) principle.

The FS1027 offers key advantages over resistorbased flow solutions.

The sensor utilizes thermopile sensing, which provides an excellent signal-to-noise ratio.

The sensor comprises a “solid” thermal isolation technology with protective coating.

The non-linear flow output curve allows for sensitivity from low to full-scale flow rates.

The FS10

FS1027 Features

* Liquid flow: 0 to 10 liters/min (with water)

* Robust “solid” isolation technology

* Resistant to vibration and pressure shock

* Minimal flow resistance

* Analog voltage output

* Supply voltage: 5V Applications

* Water dispensers

* Liquid metering or switch

* Pr

FS1027-Renesas.pdf

Preview of FS1027 PDF
FS1027 Datasheet Preview Page 2 FS1027 Datasheet Preview Page 3

Datasheet Details

Part number:

FS1027

Manufacturer:

Renesas ↗

File Size:

369.85 KB

Description:

Liquid flow sensor.
