FS1025 Datasheet - Renesas

FS1025 - Liquid Flow Sensor

3 2.

Specifications 4 2.1 Absolute Maximum Ratings 4 2.2 Recommended Operating Conditions 4 2.3 Electrical Characteristics 4 3.

Typical Flow Graphs 5 3.1 Heater Enable 5 3.2 Electrical Connector 5 3.3 Module Material 6 3.4 Tubing Guidance 6 4.

Package Outline Drawings 6 5.

Ordering Information

FS1025 Liquid Flow Sensor Module Datasheet The FS1025 liquid flow sensor module measures the flow rate using the thermo-transfer (calorimetric) principle.

The FS1025 offers key advantages over resistorbased flow solutions.

The sensor uses thermopile sensing, which provides an excellent signal-to-noise ratio.

The sensor comprises a “solid” thermal isolation technology with protective coating.

The non-linear flow output curve allows for sensitivity from low to full-scale flow rates.

The FS1025 p

FS1025 Features

* Liquid flow: 0 to 7 liters/min (with water)

* Robust “solid” isolation technology

* Resistant to vibration and pressure shock

* Minimal flow resistance

* Analog voltage output

* Supply voltage: 5V Applications

* Water dispensers

* Liquid metering or switch

* Pro

FS1025-Renesas.pdf

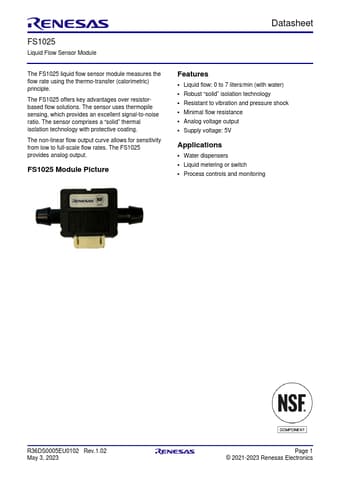

Preview of FS1025 PDF
FS1025 Datasheet Preview Page 2 FS1025 Datasheet Preview Page 3

Datasheet Details

Part number:

FS1025

Manufacturer:

Renesas ↗

File Size:

359.74 KB

Description:

Liquid flow sensor.
