FS1025-DG Gas Flow Sensor

3 2. Specifications 4 2.1 Absolute Maximum Ratings 4 2.2 Recommended Operating Conditions 4 2.3 Electrical Specifications 4 2.4 I2C Electrical Specifications 5 3. Flow Graphs 6 4. I2C Sensor Interface 7 4.1 Sensor Slave Address 7 4.2 I2C Communication 7 4.3 Digital Output Measurements 8 4.4.

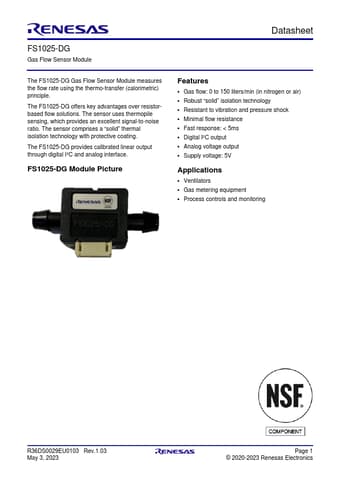

FS1025-DG Gas Flow Sensor Module Datasheet The FS1025-DG Gas Flow Sensor Module measures the flow rate using the thermo-transfer (calorimetric) principle. The FS1025-DG offers key advantages over resistorbased flow solutions. The sensor uses thermopile sensing, which provides an excellent signal-to-noise ratio. The sensor comprises a “solid” thermal isolation technology with protective coating. The FS1025-DG provides calibrated linear output through digital I2C and analog interface. FS1025-DG .

FS1025-DG Features

* Gas flow: 0 to 150 liters/min (in nitrogen or air)

* Robust “solid” isolation technology

* Resistant to vibration and pressure shock

* Minimal flow resistance

* Fast response: < 5ms

* Digital I2C output

* Analog voltage output

* Supply voltage: 5V Applications
