FS1023-DL Datasheet - Renesas

FS1023-DL - Liquid Flow Sensor

3 2.

Specifications 4 2.1 Absolute Maximum Ratings 4 2.2 Recommended Operating Conditions4 2.3 Electrical Characteristics 4 3.

Typical Flow Graphs5 4.

I2C Sensor Interface7 4.1 Sensor Slave Address 7 4.2 I2C Communication7 4.3 Digital Output Measurements 8 4.4 Calculating Checksum8 4.5 Electrical Co

FS1023-DL Liquid Flow Sensor Module Datasheet The FS1023-DL liquid flow sensor module measures the flow rate using the thermo-transfer (calorimetric) principle.

The FS1023-DL offers key advantages over resistorbased flow solutions.

The sensor uses thermopile sensing, which provides an excellent signal-to-noise ratio.

The sensor comprises a “solid” thermal isolation technology with protective coating.

The non-linear flow output curve allows for sensitivity from low to full-scale flow rates.

The

FS1023-DL Features

* Liquid flow: 0 to 3 liters/min (in water)

* Robust “solid” isolation technology

* Resistant to vibration and pressure shock

* Minimal flow resistance

* Digital I2C output

* Analog voltage output

* Supply voltage: 5V Applications

* Water dispensers

* Liquid meter

FS1023-DL-Renesas.pdf

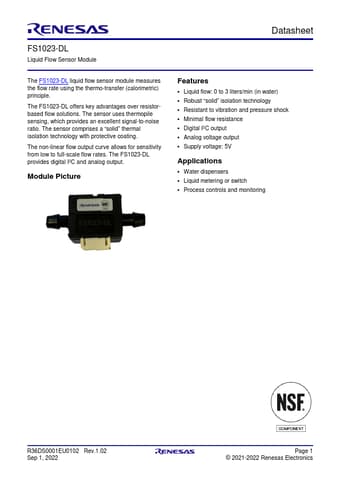

Preview of FS1023-DL PDF
