FS1023 Liquid Flow Sensor

3 2. Specifications 4 2.1 Absolute Maximum Ratings 4 2.2 Recommended Operating Conditions4 2.3 Electrical Characteristics 4 3. Typical Flow Graphs5 3.1 Heater Enable5 3.2 Electrical Connector5 3.3 Module Material 6 3.4 Tubing Guidance 6 4. Package Outline Drawings6 5. Ordering Information6 6. Revisi.

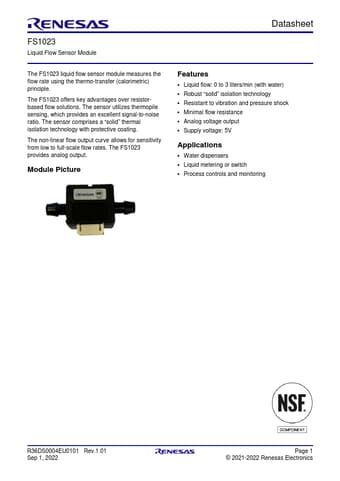

FS1023 Liquid Flow Sensor Module Datasheet The FS1023 liquid flow sensor module measures the flow rate using the thermo-transfer (calorimetric) principle. The FS1023 offers key advantages over resistorbased flow solutions. The sensor utilizes thermopile sensing, which provides an excellent signal-to-noise ratio. The sensor comprises a “solid” thermal isolation technology with protective coating. The non-linear flow output curve allows for sensitivity from low to full-scale flow rates. The FS10.

FS1023 Features

* Liquid flow: 0 to 3 liters/min (with water)

* Robust “solid” isolation technology

* Resistant to vibration and pressure shock

* Minimal flow resistance

* Analog voltage output

* Supply voltage: 5V Applications

* Water dispensers

* Liquid metering or switch

* Pro

FS1023 Datasheet (337.18 KB)
