HD74HC684, HD74HC682 - 8-bit Magnitude Comparator

Renesas

📥 Download Datasheet

HD74HC684 Datasheet Preview — This datasheet PDF includes multiple part numbers: HD74HC684, HD74HC682. Please refer to the document for exact specifications by model.

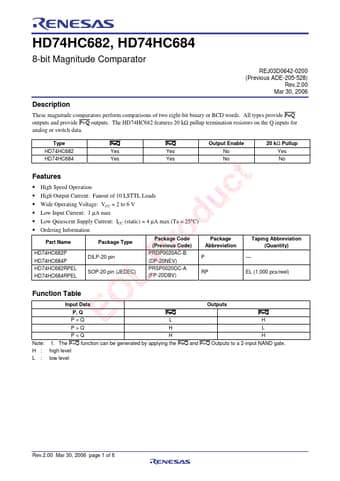

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	HD74HC684, HD74HC682
Manufacturer	Renesas ↗
File Size	194.84 KB
Description	8-bit Magnitude Comparator
Datasheet	HD74HC682-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: HD74HC684, HD74HC682. Please refer to the document for exact specifications by model.

HD74HC684 Product details

Description

These magnitude comparators perform comparisons of two eight-bit binary or BCD words.

Features

20 kΩ pullup termination resistors on the Q inputs for analog or switch data. Type HD74HC682 HD74HC684 P=Q Yes Yes P>Q Yes Yes Output Enable No No 20 kΩ Pullup Yes No Features.
High Speed Operation.
High Output Current: Fanout of 10 LSTTL Loads.
Wide Operating Voltage: VCC = 2 to 6 V.
Low Input Current: 1 µA max.
Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C).
Ordering Information Part Name Package Type Package.
