HD74HC623

Octal Bus Transceivers

HD74HC623 Features

* High Speed Operation: tpd (Bus to Bus) = 12 ns typ (CL = 50 pF) High Output Current: Fanout of 15 LSTTL Loads Wide Operating Voltage: VCC = 2 to 6 V Low Input Current: 1 µA max Low Quiescent Supply Current: ICC (static) = 4 µA max (Ta = 25°C) Functi

HD74HC623 General Description

This octal bus transceiver is designed for asynchronous two-way communication between data buses. The control fuction implementation allows for maximum flexibility in timing. This device allows data transmission from the A bus to the B bus or from the B bus to the A bus depending upon the logic leve.

HD74HC623 Datasheet (60.47 KB)

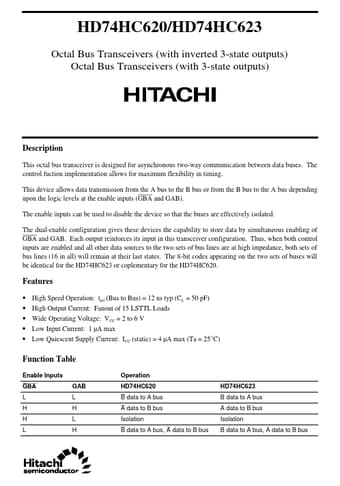

Preview of HD74HC623 PDF

Datasheet Details

Part number:

HD74HC623

Manufacturer:

Hitachi Semiconductor

File Size:

60.47 KB

Description:

Octal bus transceivers.
