HZS15, HZS2 - Silicon Epitaxial Planar Zener Diode

Renesas

Datasheet Details

Part number: HZS15, HZS2
Manufacturer: Renesas ↗
File Size: 52.76 KB
Datasheet: HZS2-Renesas.pdf
Description: Silicon Epitaxial Planar Zener Diode
Note: This datasheet PDF includes multiple part numbers: HZS15, HZS2.
Please refer to the document for exact specifications by model.

Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc.
Wide spectrum from 1.6V through 38V of zener voltage provide flexible application.

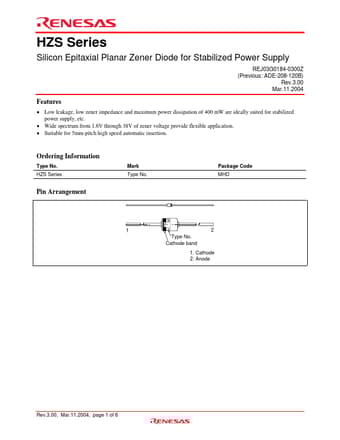

Suitable for 5mm-pitch high speed automatic insertion. Ordering Information Type No. HZS Series Pin Arrangement Mark Type No. Package Code MHD B 7 12 2 Type No. Cathode band 1. Cathode 2. Anode Rev.3.00, Mar.11.2004, page 1 of 6 HZS Series Absolute.
