ICS9ERS3165 Datasheet - Renesas

Embedded 64-Pin Industrial Temperature Range CK505 Compatible Clock

ICS9ERS3165 Features

* 2 - CPU differential low power push-pull pairs

* 9 - SRC differential low power push-pull pairs

* 1 - CPU/SRC selectable differential low power push-pull pair

* 1 - SRC/DOT selectable differential low power push-pull pair

* 5 - PCI, 33MHz

* 1 - PCI_

ICS9ERS3165 General Description

Pin# Pin Name 1 PCI0/CR#_A 2 VDDPCI 3 PCI1/CR#_B 4 PCI2/TME 5 PCI3 6 PCI4/27_SEL 7 PCI5_F/ITP_EN 8 GNDPCI 9 VDD48 10 USB48M/FSLA 11 GND48 12 VDDI/O96MHz 13 DOT96T/SRCT_LR0 14 DOT96C/SRCC_LR0 15 GND 16 VDD Type DESCRIPTION 3.3V PCI clock output or Clock Request control A for either SRC0 or SRC2 pai.

ICS9ERS3165 Datasheet (590.54 KB)

Preview of ICS9ERS3165 PDF

Datasheet Details

Part number:

ICS9ERS3165

Manufacturer:

Renesas ↗

File Size:

590.54 KB

Description:

Embedded 64-pin industrial temperature range ck505 compatible clock.

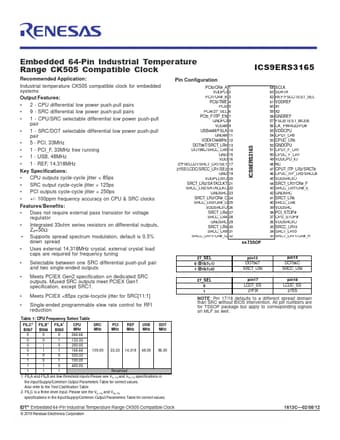

DATASHEET Embedded 64-Pin Industrial Temperature Range CK505 Compatible Clock ICS9ERS3165 Recommended Application: Industrial temperature CK505 com.
