IDT23S05T Datasheet - Renesas

2.5V ZERO DELAY CLOCK BUFFER

IDT23S05T Features

* Phase-Lock Loop Clock Distribution

* 10MHz to 133MHz operating frequency

* Distributes one clock input to one bank of five outputs

* Zero Input-Output Delay

* Output Skew < 250ps

* Low jitter

IDT23S05T General Description

The IDT23S05T is a high-speed phase-lock loop (PLL) clock buffer, designed to address high-speed clock distribution applications. The zero delay is achieved by aligning the phase between the incoming clock and the output clock, operable within the range of 10 to 133MHz. The IDT23S05T is an 8-pin ve.

IDT23S05T Datasheet (214.48 KB)

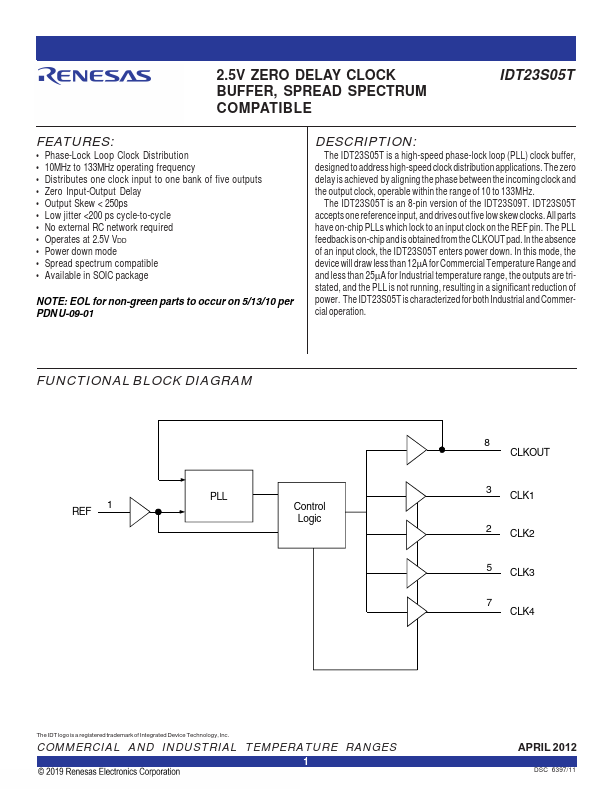

Preview of IDT23S05T PDF

Datasheet Details

Part number:

IDT23S05T

Manufacturer:

Renesas ↗

File Size:

214.48 KB

Description:

2.5v zero delay clock buffer.
IDT23S05T 2.5VZERODELAYCLOCKBUFFER,SPREADSPECTRUMCOMPATIBLE COMMERCIALANDINDUSTRIALTEMPERATURERANGES 2.5V ZERO DELAY CLOCK BUFFER, SPREAD SPECTRUM CO.

📁 Related Datasheet

IDT23S05 3.3V ZERO DELAY CLOCK BUFFER (Integrated Device)

IDT23S05 3.3V ZERO DELAY CLOCK BUFFER (Renesas)

IDT23S05E 3.3V ZERO DELAY CLOCK BUFFER (Integrated Device)

IDT23S05E 3.3V ZERO DELAY CLOCK BUFFER (Renesas)

IDT23S08 2.5V ZERO DELAY CLOCK MULTIPLIER (IDT)

IDT23S08 3.3V ZERO DELAY CLOCK MULTIPLIER (Renesas)

IDT23S08E 3.3V ZERO DELAY CLOCK MULTIPLIER (Renesas)

IDT23S08T 2.5V ZERO DELAY CLOCK MULTIPLIER (IDT)

IDT23S08T 2.5V ZERO DELAY CLOCK MULTIPLIER (Renesas)

IDT23S09 IDT23S09 3.3V ZERO DELAY CLOCK BUFFER (Integrated Device)

TAGS

IDT23S05T 2.5V ZERO DELAY CLOCK BUFFER Renesas

Image Gallery

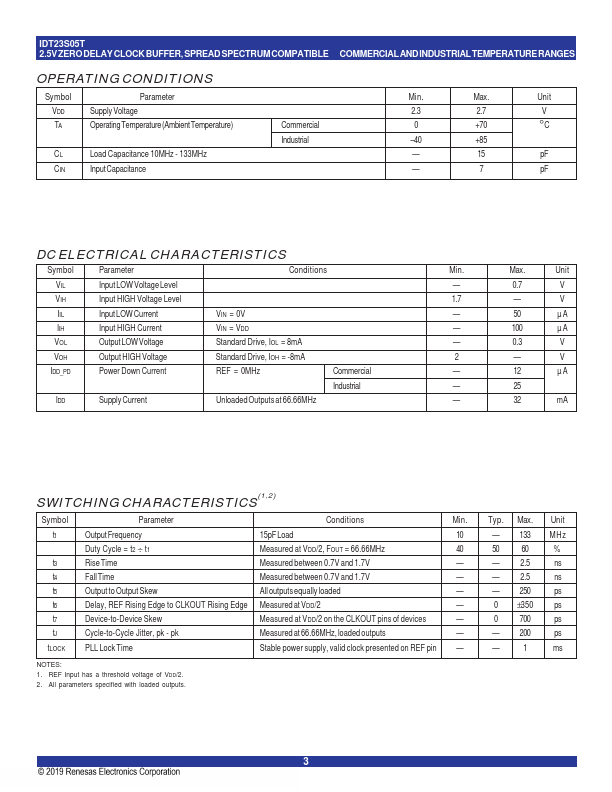

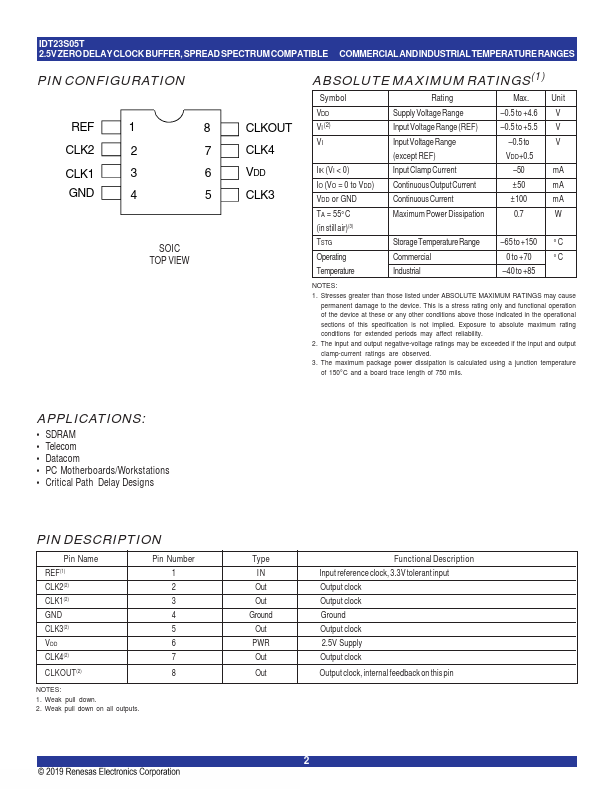

IDT23S05T Datasheet Preview Page 2 IDT23S05T Datasheet Preview Page 3
